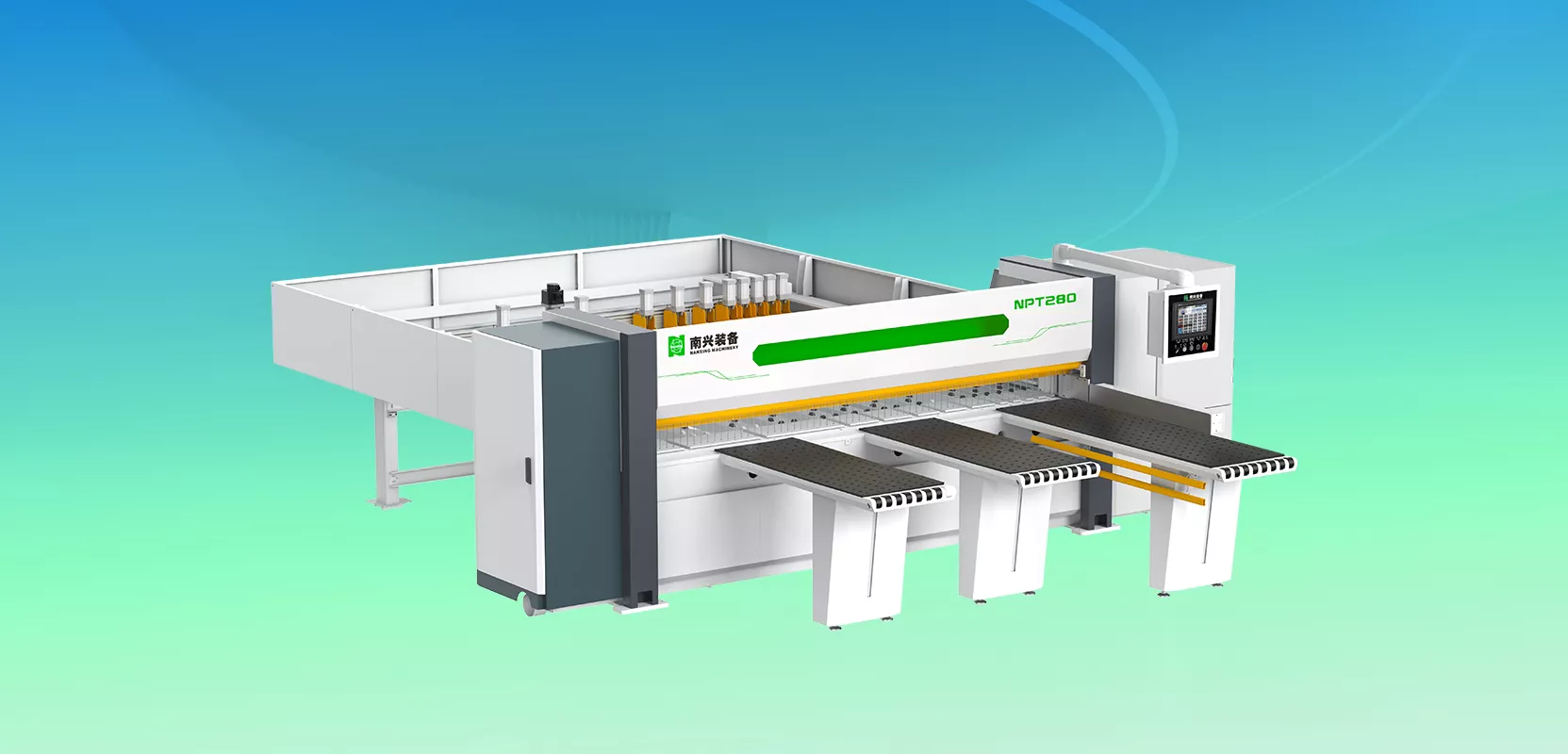

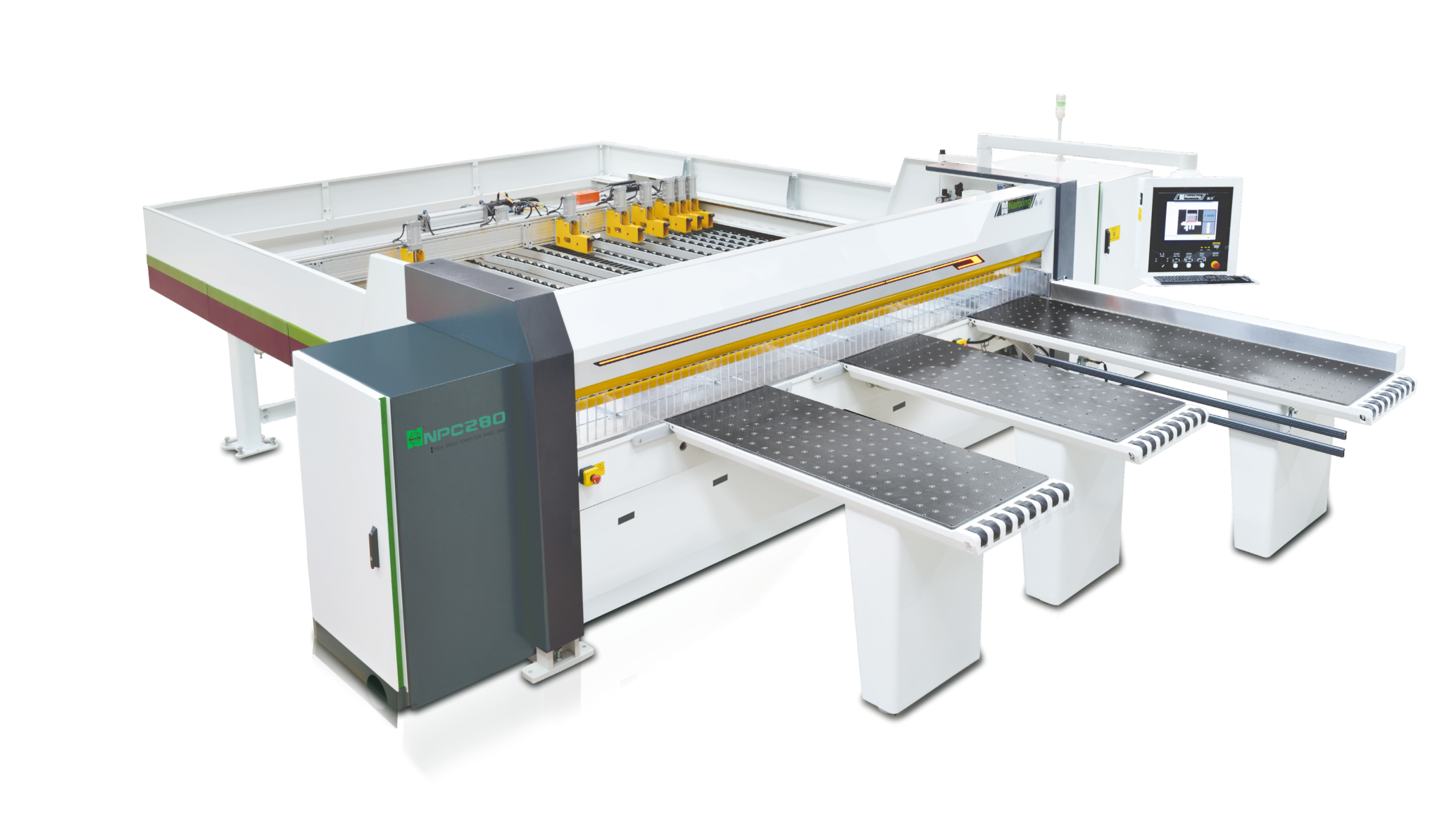

NPT280 / NPC280 – Computer Panel High-Speed Saw
High-Performance Computer Panel Saw for Precision Cutting
Affordable Automated Panel Cutting
The NPT280/NPC280 provides entry-level access to computer-controlled panel sawing with professional features. Ideal for workshops upgrading from manual saws or smaller manufacturers requiring automated cutting.
Key Features
Servo-Controlled Cutting
- 2kW servo motor saw carriage
- Rack and pinion movement system
- Automatic width-based positioning
- Reduces unnecessary travel distance
- High-speed operation
Efficient Performance
- Forward speed: Up to 90 m/min
- Backward speed: Up to 120 m/min
- Automatic pressure beam adjustment
- Self-adjusts to panel stack height
- Maximizes cutting efficiency
User-Friendly Software
- Work process management
- Detailed cutting reports
- Cutting pattern simulation
- Error message display
- Barcode printing capability
- Intuitive HMI interface
Technical Specifications
| Specification | NPT280 / NPC280 |
|---|---|
| Max Cutting Length | 2,800mm |
| Max Cutting Thickness | 90mm |
| Forward Speed | 90 m/min |
| Backward Speed | 120 m/min |
| Saw Carriage Motor | 2kW servo |
| Movement System | Rack and pinion |
| Pressure Beam | Auto-adjusting |
| Control Interface | HMI touchscreen |
| Software Features | Full management suite |
Applications
Perfect For:
- Small furniture workshops upgrading to automation
- Cabinet shops requiring consistent accuracy
- Entry-level panel furniture production
- Custom cutting operations
- Job shops with varied requirements
- Operations needing cutting documentation
Materials Processed:
- Plywood panels
- MDF boards
- Particleboard
- Melamine-faced panels
- Laminated boards
- Solid wood panels
Benefits
✓ Affordable Automation – Entry-level pricing with professional features
✓ High Efficiency – 90 m/min forward speed maximizes productivity
✓ Intelligent Operation – Automatic adjustments reduce operator intervention
✓ Production Tracking – Barcode printing enables downstream integration
✓ Reduced Material Waste – Cutting simulation prevents errors
✓ Easy Upgrade Path – Professional software platform grows with your business
✓ Space Efficient – Compact design suitable for smaller workshops
