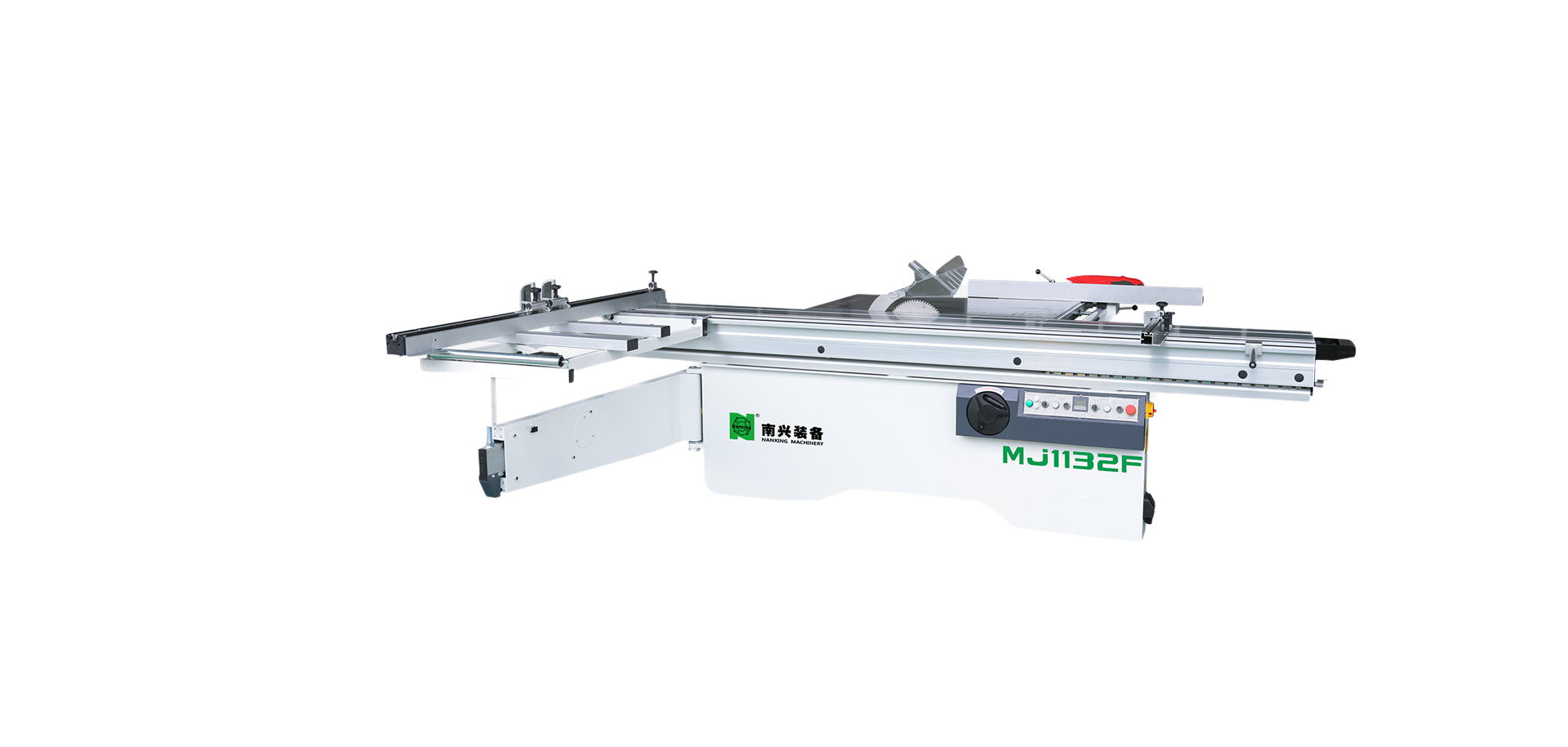

SLIDING TABLE SAW MJ1132F- NANXING
Versatile Panel Cutting Workhorse
The MJ1132F sliding table saw makes panel cutting easy and flexible for workshops and small manufacturers. With powerful motors, smooth-running sliding table, and precise controls, this machine delivers professional results for diverse panel materials.
Key Features
Precision Cutting System
- Powerful saw motor with variable speed

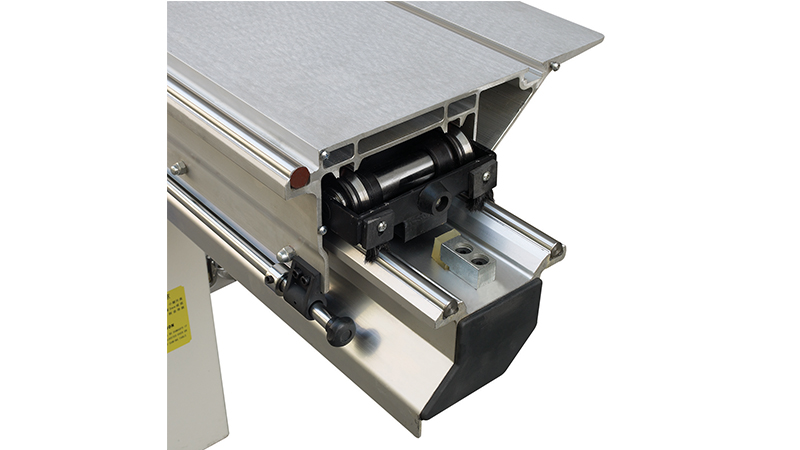

- Smooth-running sliding table on precision guides
- Electric blade height adjustment
- Manual blade tilting 0-45°
- Scoring blade for chip-free cuts
Quality Construction
- Strong machine body from CNC-machined parts
- Higher stability and longer service life
- No deformation under continuous use
- Durable steel construction
- Professional-grade components
Easy Operation

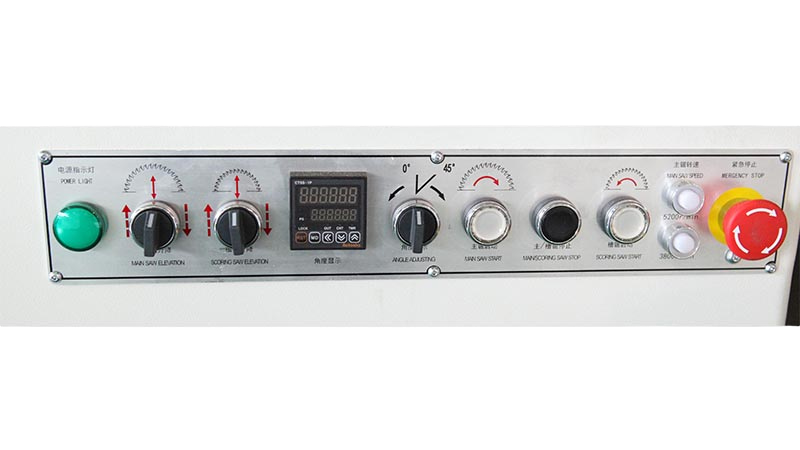

- Electric height adjustment via button control
- Manual tilt adjustment via hand wheel

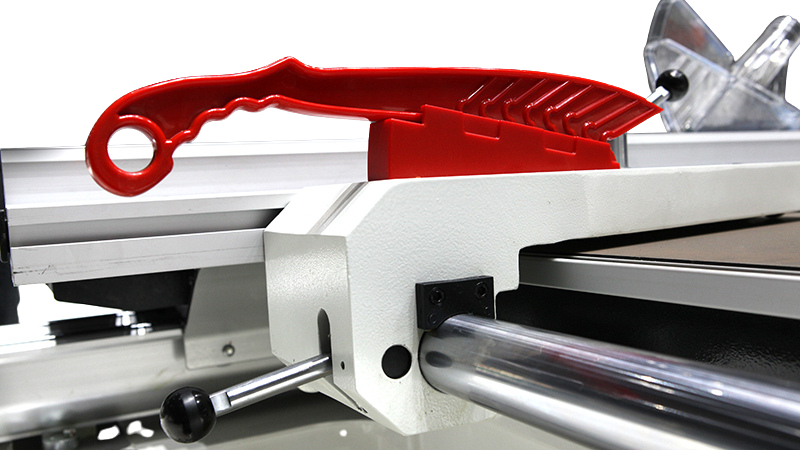

- Precise guiding rail system
- Smooth sliding action
- User-friendly controls
Technical Specifications
| Model | MJ1132M | MJ1138M |
| Cutting length | 3100mm | 3700mm |
| 0°cutting thickness | 100mm | 100mm |
| 45°cutting thickness | 70mm | 70mm |
| Main saw rotating speed | 3800/5200rpm | 3800/5200rpm |
| Main saw motor | 5.5kw | 5.5kw |
| Scoring saw rotating speed | 9000rpm | 9000rpm |
| Scoring saw motor | 1.1kw | 1.1kw |
| Saw blade angle | 0-45° | 0-45° |
| Dust extraction | φ120mm | φ120mm |
| Total power | 6.6kw | 6.6kw |
| Overall size | 3400×3380×1400mm | 3400×3380×1400mm |
| Net weight | 785kg | 830kg |
Applications
Perfect For:
- Panel furniture manufacturing
- Cabinet component cutting
- Plywood processing
- MDF and particleboard dimensioning
- Solid wood panel cutting
- High-volume production environments
- Custom furniture shops
Materials Processed:
- Plywood panels
- MDF (Medium Density Fiberboard)
- Particleboard/Chipboard
- Melamine-faced boards
- Solid wood panels
- Laminated boards
Benefits
✓ Increased Productivity – High-speed cutting up to 90m/min maximizes daily output
✓ Superior Accuracy – ±0.1mm precision ensures perfect component fit
✓ Reduced Labor Costs – Automated loading, positioning, and unloading
✓ Minimal Waste – Optimized cutting patterns reduce material scrap
✓ Easy Operation – Intuitive software with visual workflow management
✓ Quality Finish – Scoring blade prevents chipping on laminated materials
✓ Production Tracking – Barcode labeling enables downstream integration
