Edge Banding Machines – Double Gluing Units for Narrow Edge
Professional Edge Finishing Solutions
Models: NB671DNC | NB671EMN (NB7CJMN) | NB671MN (NB577DN)
Achieve flawless edge finishes with Nanxing’s advanced edge banding machines featuring specialized double gluing units optimized for narrow edge applications. These industrial workhorses deliver professional results at production speeds up to 24 m/min.
Key Features
Double Gluing Technology
- Dual glue application units for optimal bonding
- Pre-heating system warms panel edges for superior adhesion
- Large pre-melt glue tank for continuous operation
- Temperature control for consistent application
- Suitable for humid or cold weather conditions
Complete Processing Stations
- Pre-milling with diamond blades for smooth edge preparation
- End trimming with dual rail system for precision
- Corner rounding with 2 or 4-motor configurations
- Fine trimming/scraping units with cylinder adjustment
- Buffing station for polished finish
Advanced Control System
- Automatic standby with one-button wake-up
- Energy-saving operation modes
- Adjustable feed speed: 8-24 m/min
- Digital control panel with fault diagnostics
- Pressure beam automatic height adjustment
Precision Engineering
- Heavy-duty machine body with CNC-machined components
- Profile tracking for curved edges (model dependent)
- Pneumatic and servo-driven stations
- High-quality guide rails for smooth operation
- Minimal vibration for consistent quality
Model Specifications

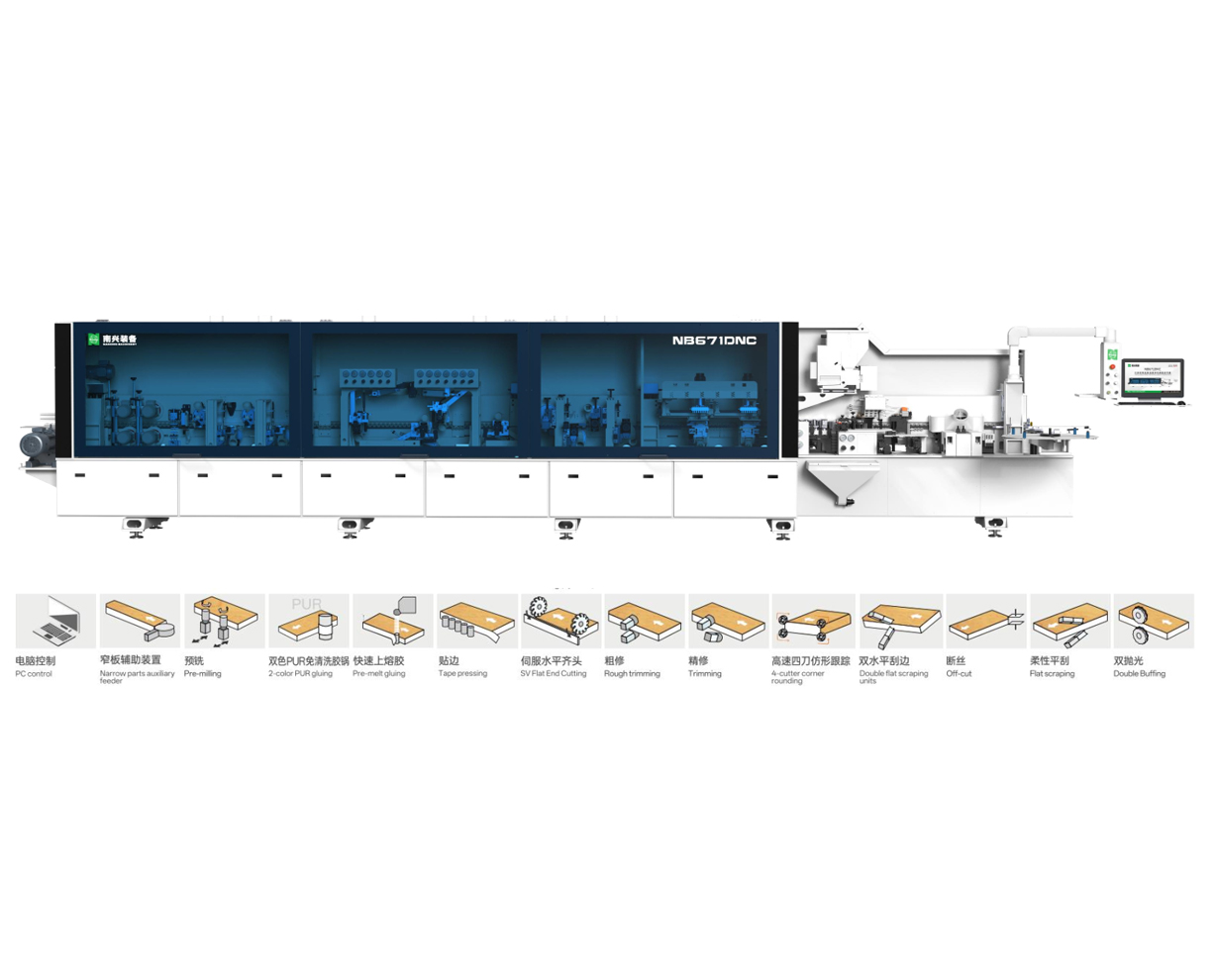

NB671DNC – Digital Control Edge Bander
- 7-8 processing functions
- Feed speed: up to 20 m/min
- Panel thickness: 10-60mm
- Edge thickness: 0.4-3mm
- Working width: up to 400mm

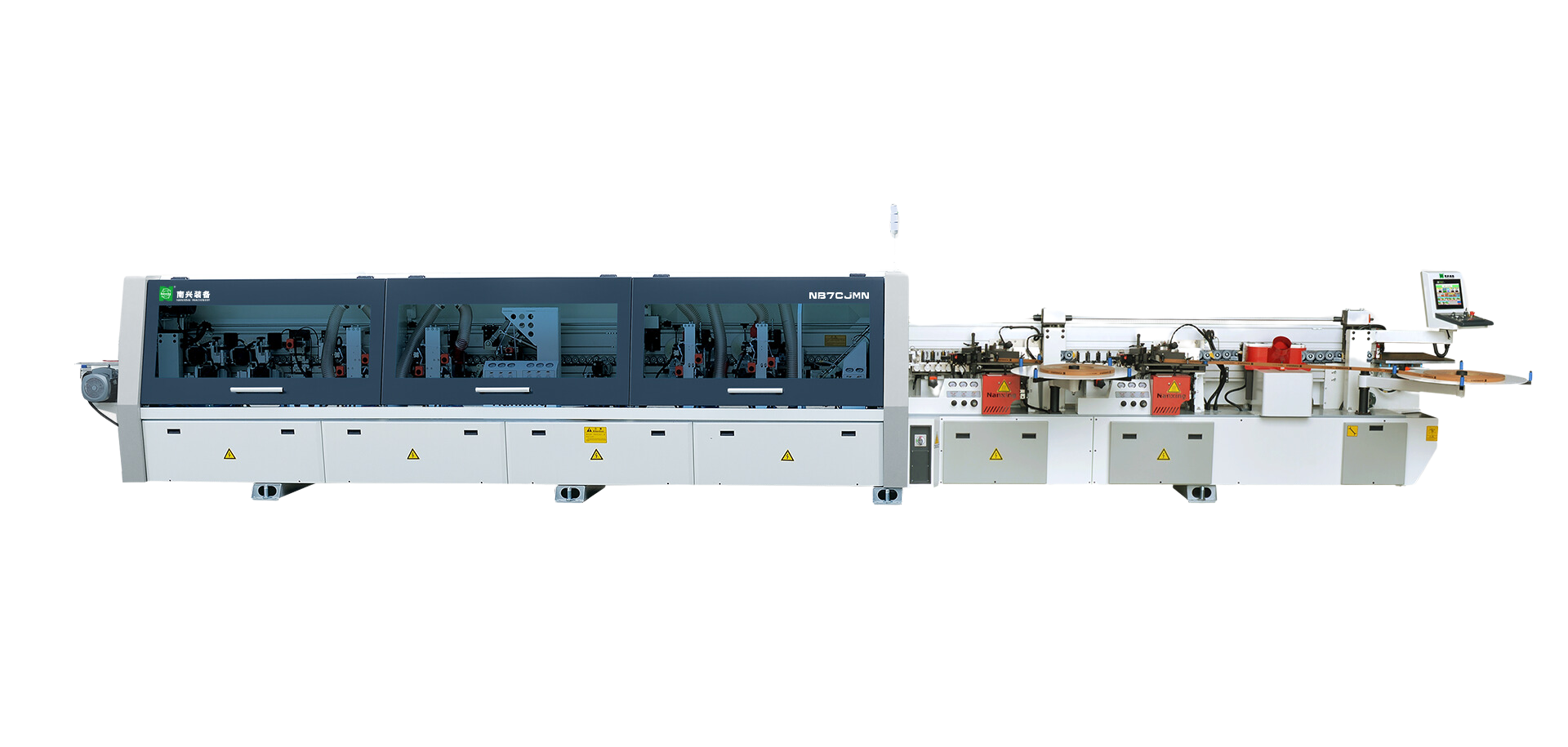

NB671EMN (NB7CJMN) – Full Function Industrial
- 8 complete processing functions
- Feed speed: up to 24 m/min
- Pre-milling and corner rounding included
- Heavy-duty construction
- Ideal for high-volume production
NB671MN (NB577DN) – Production Edge Bander
- Optimized for narrow edge applications
- Double gluing units
- End trimming precision
- Compact footprint
- Reliable for continuous operation
Processing Functions
- Pre-Milling – Diamond blades prepare edge surface
- Pre-Heating – Warms panel for optimal glue bonding
- Glue Application – Dual units ensure complete coverage
- Tape Application – Precise positioning and pressure
- Pressure Section – Uniform bonding pressure
- End Trimming – Clean cut of excess tape
- Fine Trimming/Scraping – Removes glue residue
- Corner Rounding – Creates smooth radius
- Buffing – Polished professional finish
Edge Materials Compatibility
✓ PVC edge banding
✓ ABS edge tape
✓ Melamine edging
✓ Veneer strips
✓ Acrylic edges
Applications
Perfect For:
- Cabinet door finishing
- Furniture panel edging
- Kitchen cabinet production
- Closet and wardrobe manufacturing
- Office furniture fabrication
- Architectural panels
- Retail fixtures
Benefits
✓ Professional Finish – Flawless edges meet premium quality standards
✓ High Production Speed – Up to 24 m/min for maximum throughput
✓ Versatile Processing – Handles straight and curved edges
✓ Consistent Quality – Automated controls ensure repeatability
✓ Reduced Labor – Minimal operator intervention required
✓ Energy Efficient – Auto-standby reduces power consumption
✓ Easy Maintenance – Accessible components for quick servicing
✓ Long Service Life – Heavy-duty construction built to last
