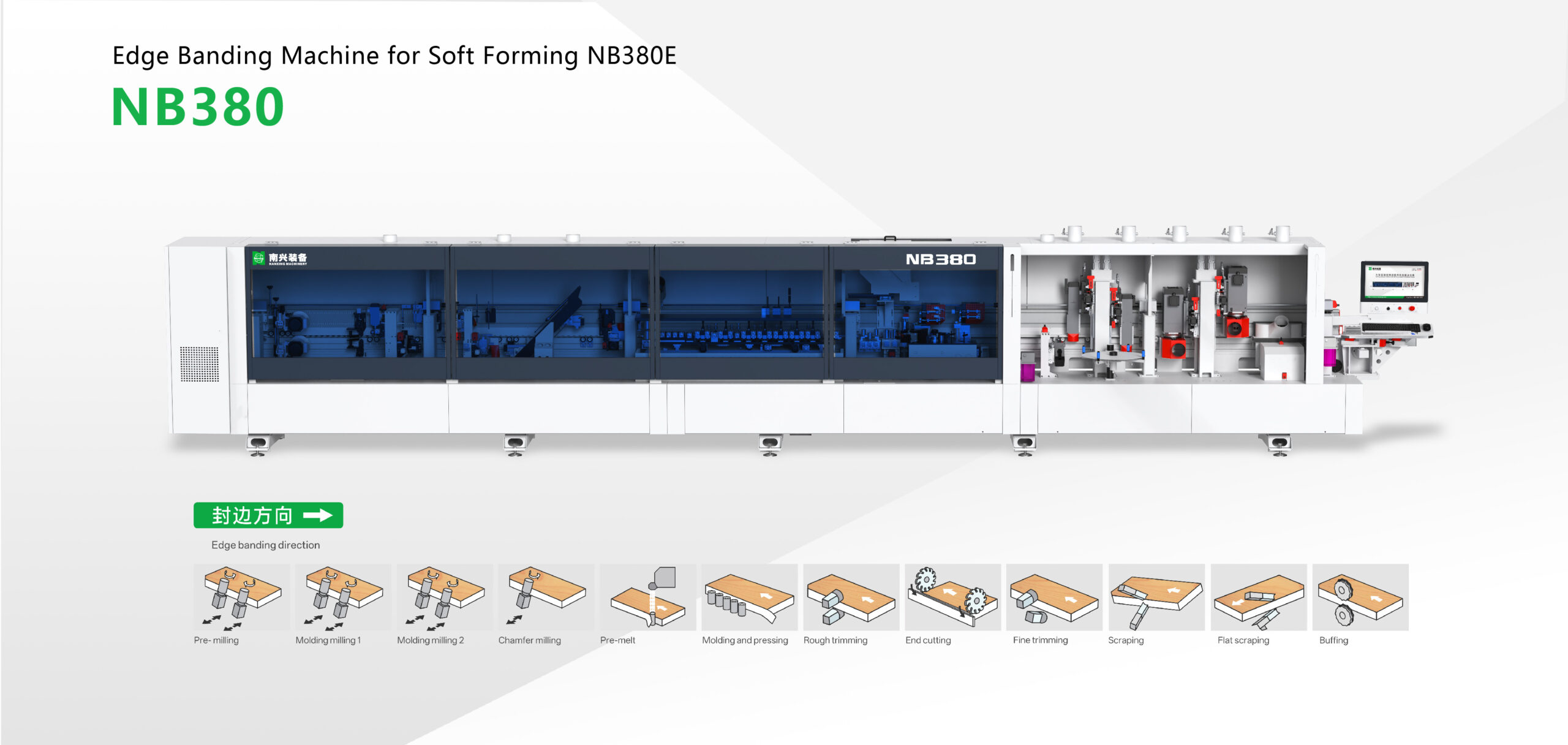

NB380 – Multi-Purpose Soft-Forming Edge Bander
Advanced 13-Shape Soft-Forming System
The NB380 is a revolutionary multi-purpose automatic edge banding machine designed specifically for handle-free door panels and light luxury minimalist high-end furniture production. With 13 interchangeable shape profiles and fully automatic control, it represents the ultimate solution for modern furniture manufacturing.
Key Features
13 Shape Profiles:
- Full C profile
- Left Half J profile
- Right Half J profile
- Concave Center
- Left Concave Center
- Right Concave Center
- Central Teardrop
- W-Shaped profile
- Left Diamond Shape
- Right Diamond Shape
- Central Diamond Shape
- Full Straight
- Custom profiles
Advanced Technology:
- Fully automatic system control
- Universal milling cutter set for all shapes
- One-step molding edge banding
- Green energy-saving function with auto-standby
- Automatic motor shutdown during idle periods
- Digital shape selection system
Technical Specifications
| Specification | NB380 |
|---|---|
| Min Panel Length | ≥300mm (center concave ≥400mm) |
| Panel Width | ≥150mm |
| Min Panel Size | 300mm × 150mm |
| Panel Thickness | 18mm (straight) / 18-25mm (soft forming) |
| Edge Tape Thickness | 0.5-0.6mm (soft forming) / 0.5-1.2mm (straight) |
| Feed Speed | 8 m/min |
| Total Power | 68kW |
| Overall Dimensions | 11,015mm × 1,000mm × 1,940mm |
| Net Weight | 6,000kg |
| Shape Profiles | 13 interchangeable shapes |
Processing Features:
- Pre-milling for edge preparation
- Pre-heating for optimal adhesion
- Dual glue application system
- Pressure section for bonding
- End trimming units
- Profile forming stations
- Scraping and buffing
Applications
- Handle-free kitchen cabinets
- Luxury minimalist furniture
- High-end door panels
- Contemporary wardrobe systems
- Premium architectural millwork
- Designer furniture collections
Benefits: ✓ Maximum Versatility – 13 different profiles from one machine
✓ Production Efficiency – One-step molding reduces cycle time
✓ Cost Reduction – Universal tooling eliminates multiple setups
✓ Energy Savings – Auto-standby reduces power consumption
✓ Market Differentiation – Offer premium handle-free designs
✓ ROI Optimization – Expand product lines without additional equipment
