NB370 (NB7X) – Inclined Edge Banding Machine
Professional Bevel and Inclined Edge Solution
Create trending handle-free cabinet designs with finger-pull profiles, bevel edges, and inclined edging. The NB370 eliminates the need for additional hardware while delivering sophisticated automated edge profiles.
Key Features

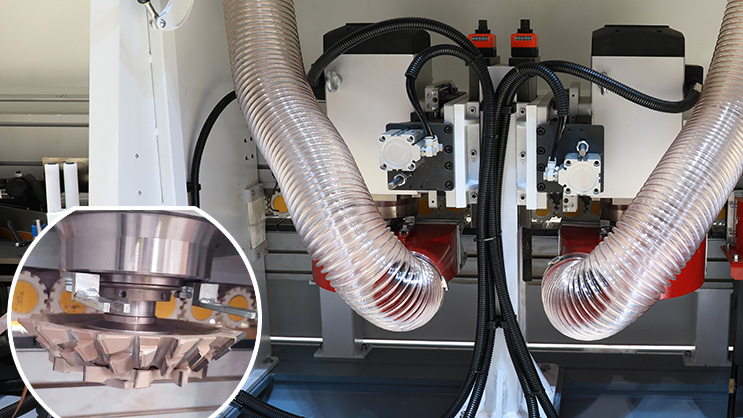

- 45-degree diamond forming bevel cutters
- Two 4kW high-power motors for precision cutting
- High rotating speed: 2,800 rpm with low vibration

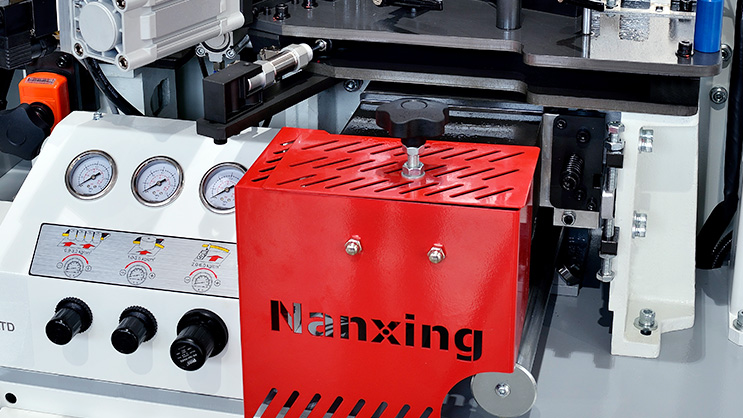

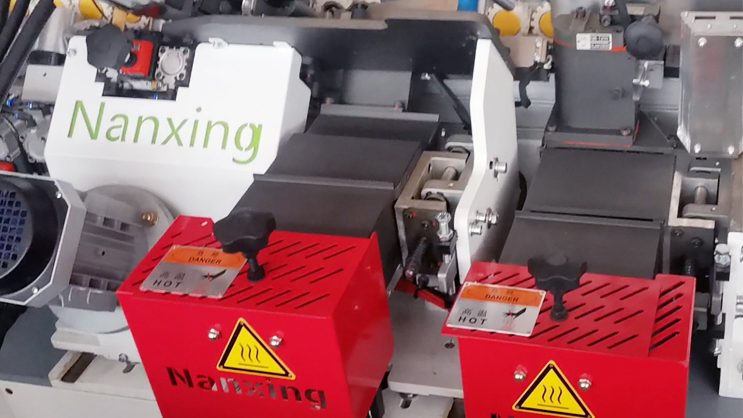

- Dual gluing system for straight and bevel edges
- Release agent sprayer for clean operation

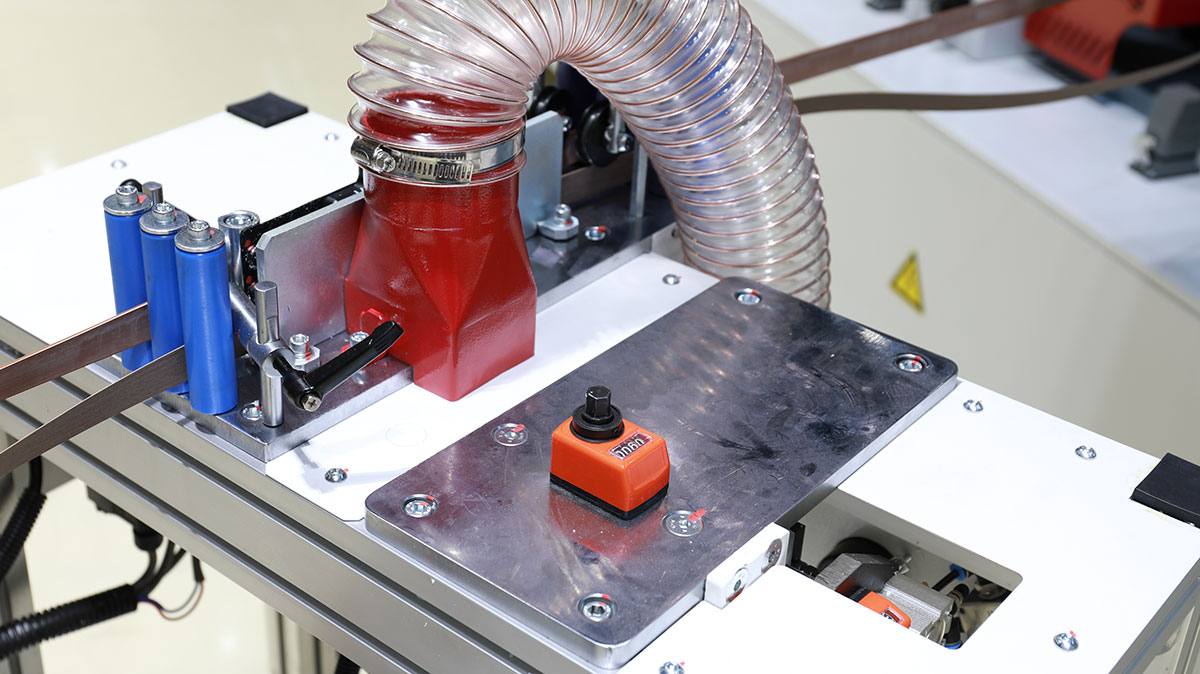

- Half bevel and full bevel tape feeding system

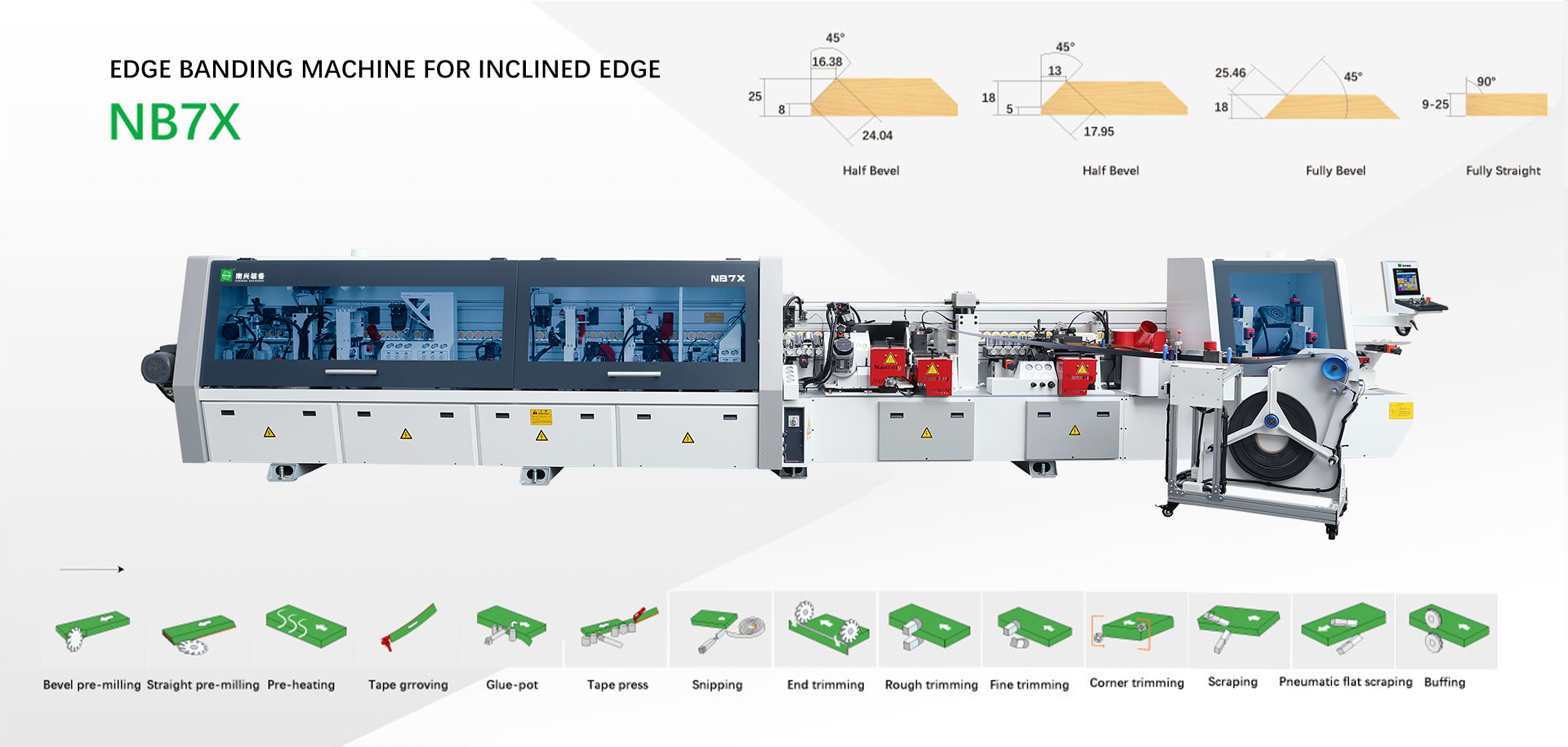

Processing Capabilities:
- Half bevel edges
- Full bevel edges
- Straight edges
- Finger-pull profiles
- Shark nose profiles
- Bevel edge grooving
Technical Specifications
| Model | NB7X/NB370 |
| Workpiece length | ≥150mm |
| Workpiece width | ≥120mm |
| Min workpiece size | ≥150×120mm |
| Workpiece thickness | 9-25mm |
| Edge tape thickness | 0.6-2mm |
| Feeding speed | 14m/min（inclined）24m/min(straight) |
| Bevel angle | 45° |
| Dust extraction | φ125mm×6 |
| Total power | 42kw |
| Overall dimension | 9800×1050×1650mm |
| Net weight | 3900kg |
Applications
Handle-free kitchen cabinets, modern furniture production, architectural millwork, contemporary cabinet designs, luxury minimalist furniture
Benefits:
✓ Design Flexibility – Create multiple profile types on one machine
✓ Hardware Elimination – Finger-pull designs remove need for handles
✓ Precision Forming – 45° diamond cutters deliver perfect bevels
✓ Cost Efficiency – In-house profile creation versus outsourcing
✓ Modern Aesthetics – Meet demand for minimalist design trends
