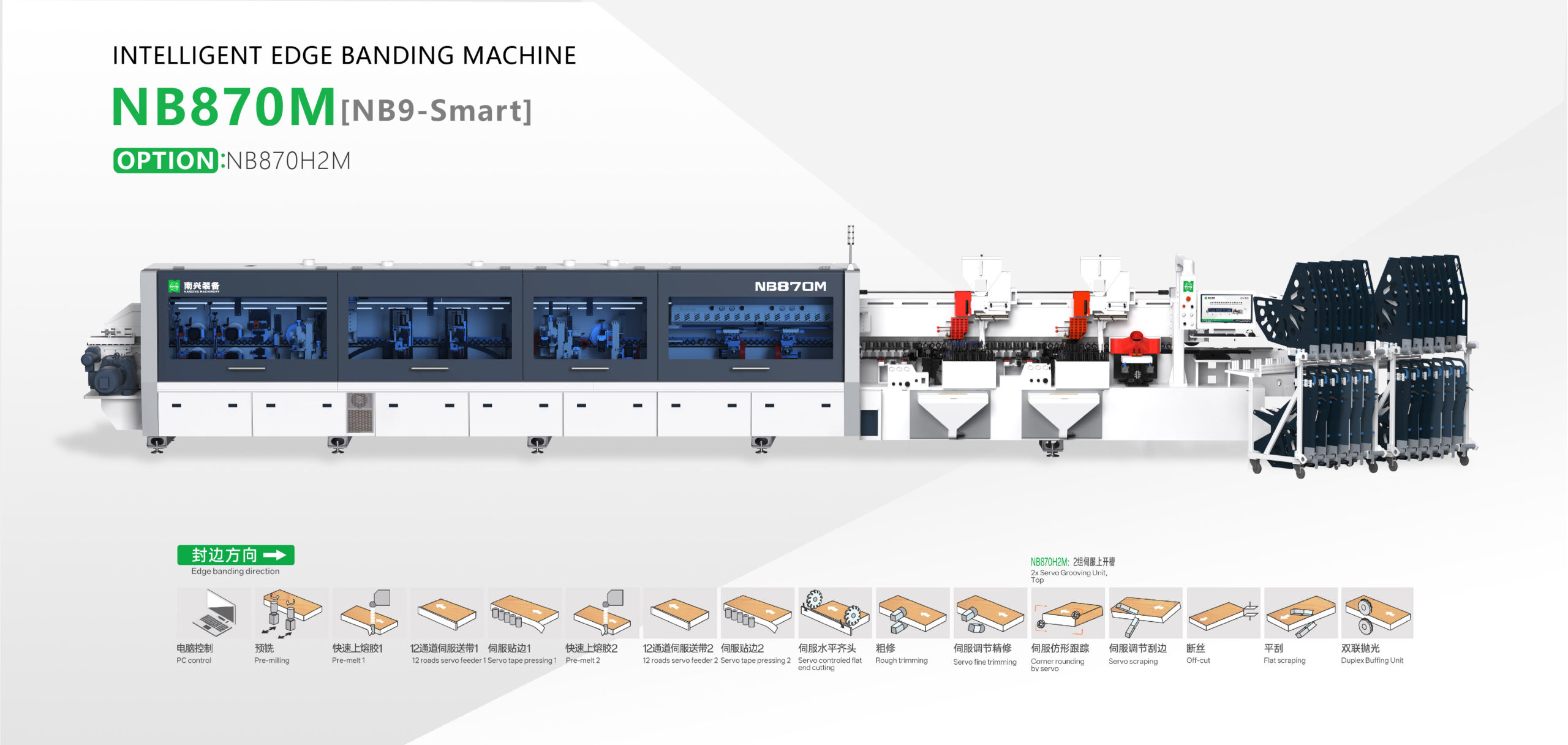

NB870M – Mid-Range Double-Sided Edge Banding Machine
Balanced Performance and Value
Perfect for growing furniture manufacturers requiring double-sided processing without premium features. The NB870M delivers reliable performance with essential functions for consistent quality edge banding.
Key Features
- Essential double-sided processing
- Pre-milling on both sides
- Dual glue application
- End trimming capabilities
- Corner rounding options
- Buffing stations
Technical Specifications
Model |
NB870M |
| Panel length | ≥120 mm |
| Panel width | ≥80 mm
|
| Min panel size | 120×120mm; 200×80mm
|
| Panel thickness | 9-60mm
|
| Edge tape thickness | 0.4-3mm
|
| Feeding speed | 18/22/26m/min |
| Feeding speed(corner trimming on) | 22m/min |
| Dust extraction | φ125mm×7 |
| Total power | 53kw |
| Overall dimension | 11500×900×1900mm
|
| Net weight | 10000KG |
